Cage kits Corvette C6 Z06 FD Spec roll cages

Cage kits C6 Z06 FD Spec roll cages come CNC notched and bent for quick fitment and welding. All tubing comes laser-etched showing where the tubes should connect. It’s important to note that this is a weld-in kit that requires a certain amount of skill for fitment. The more time you take for fitting and measuring, the better the overall cage will fit. This kit provides two harness bar options, for either configuration of the cage. Whether it be single diagonals in the main with rear down bars or dual diagonals in the main with rear down bars.

**This cage is designed for the C6 Z06 Aluminum Chassis. It has two-part baseplates with an aluminum backing plate welded to the chassis with a steel baseplate bolted to it through press-in nuts. **

The following Kits require Gutted Doors

• Matt field edition

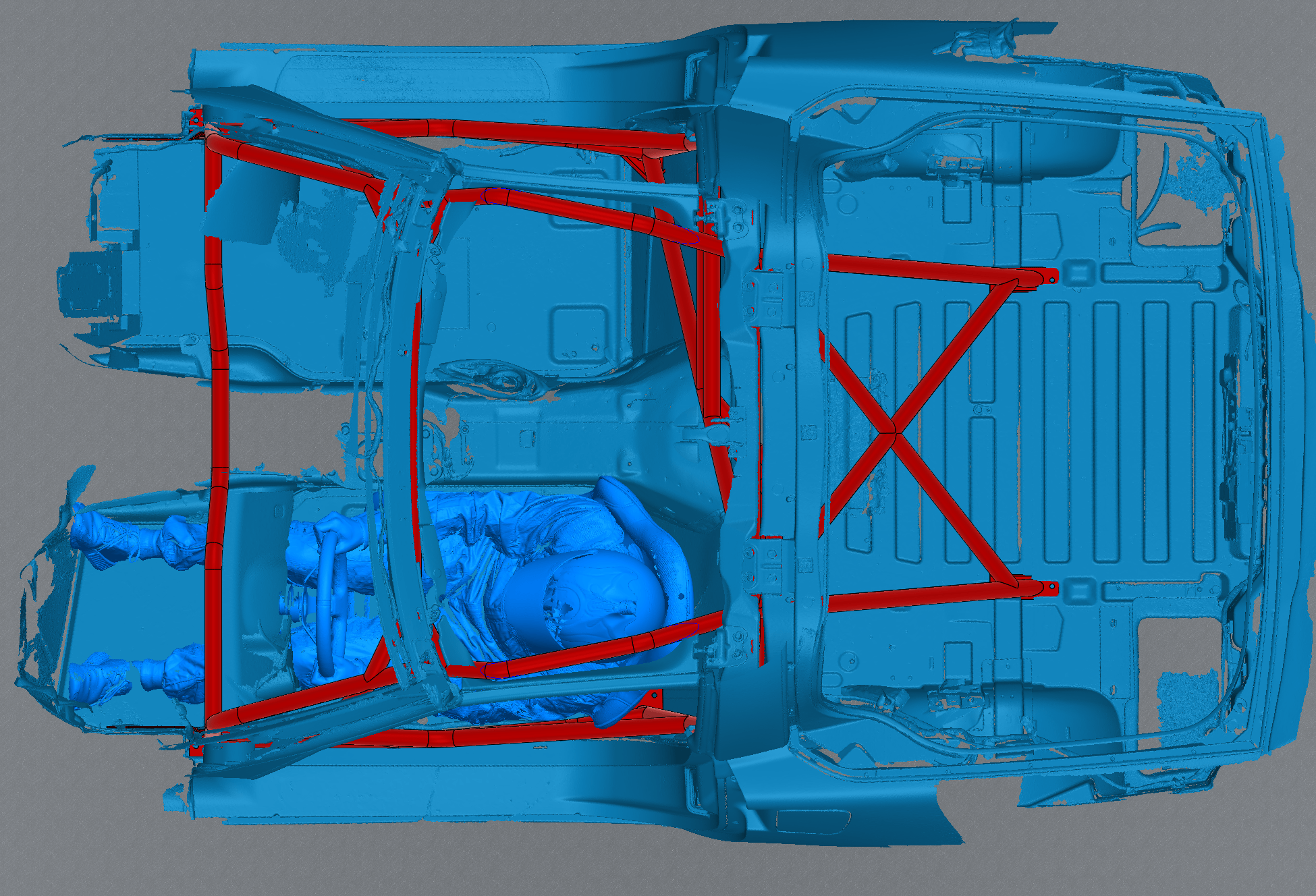

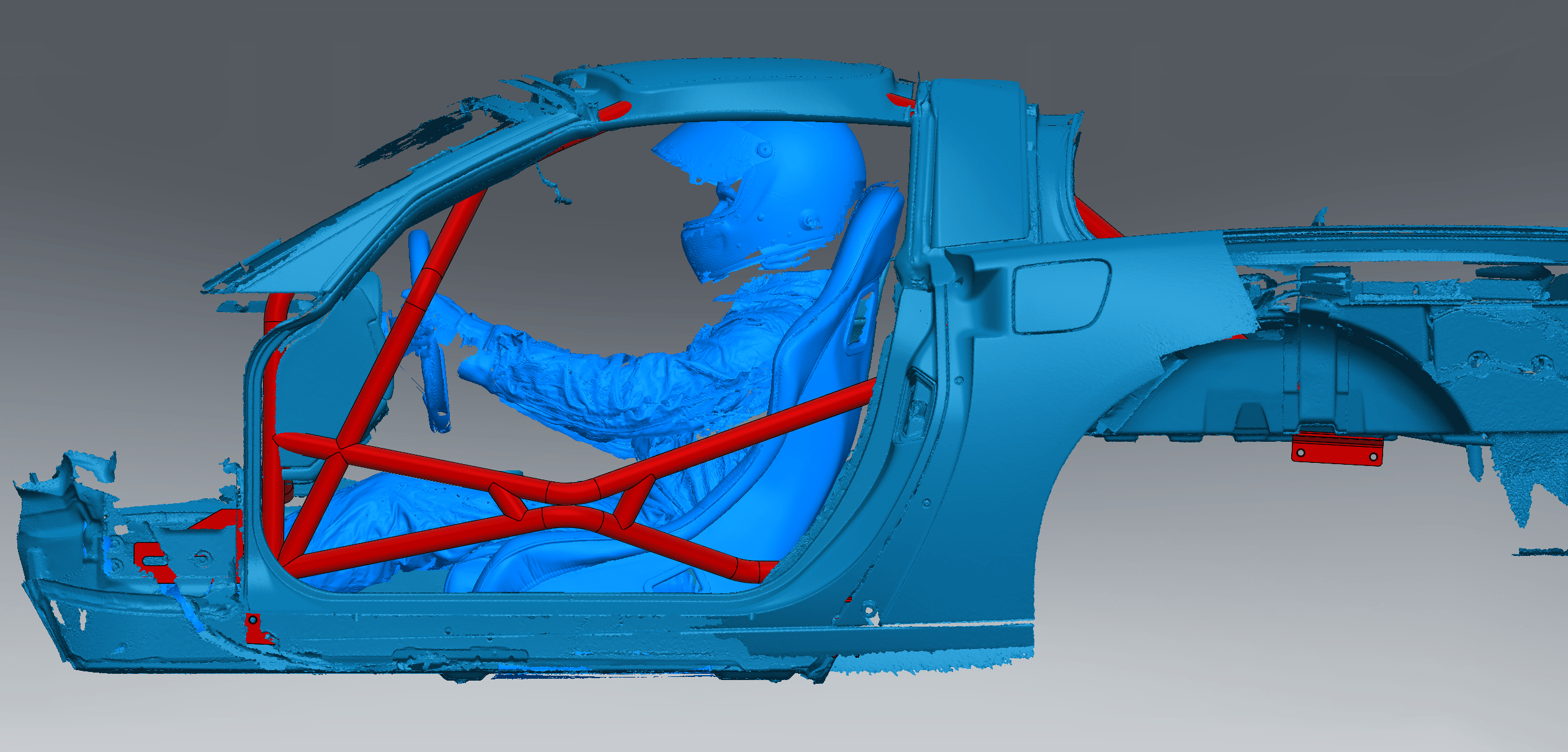

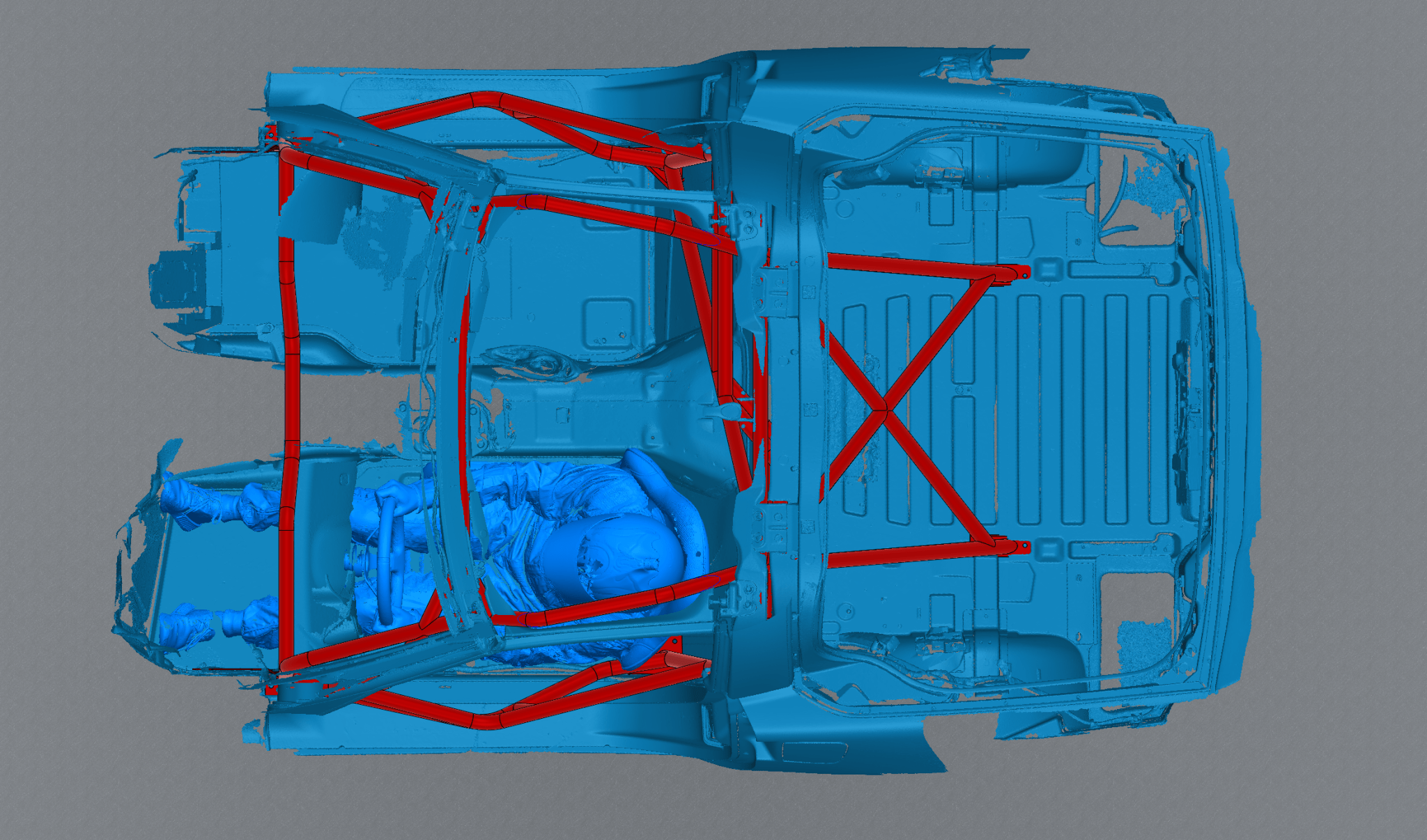

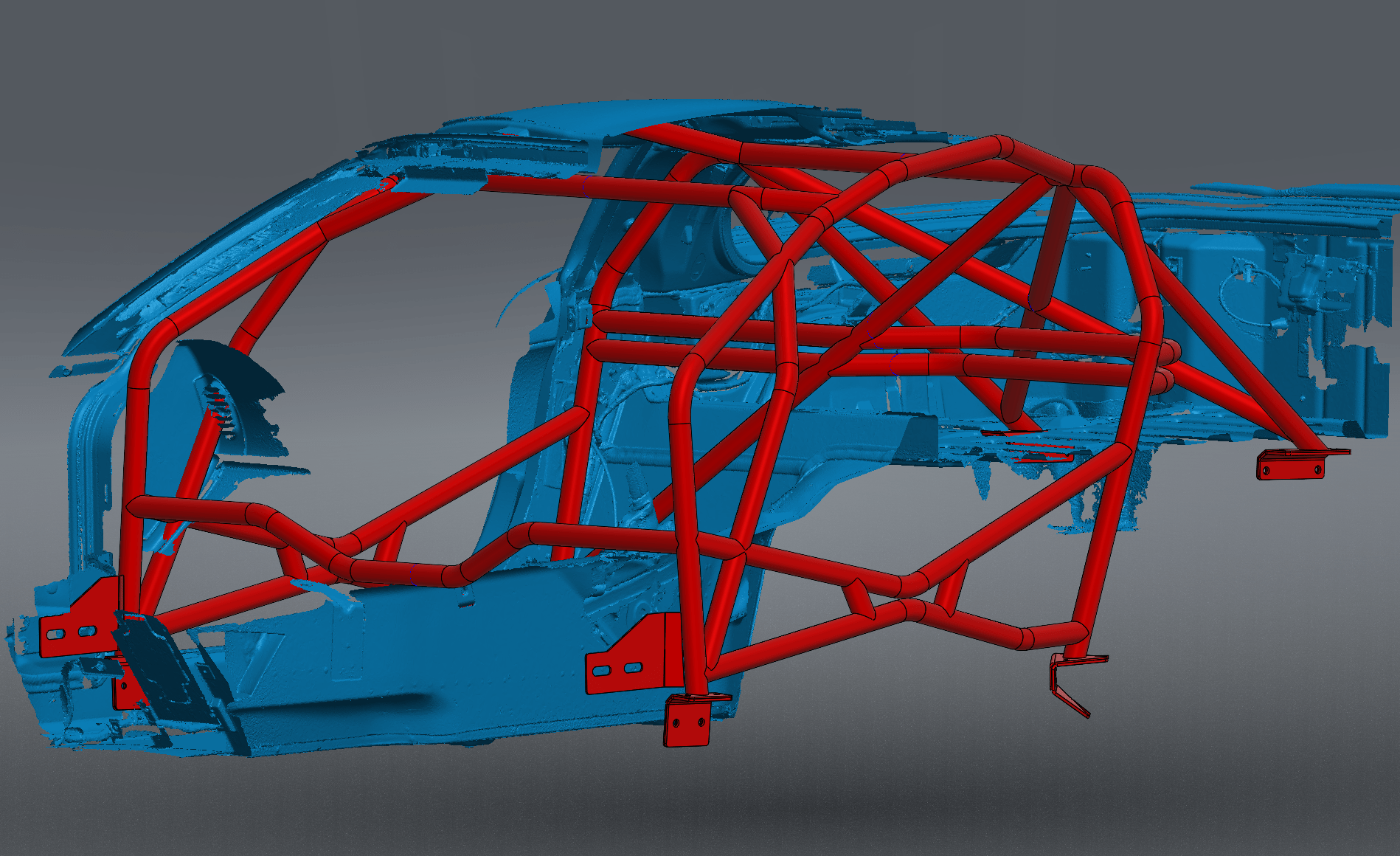

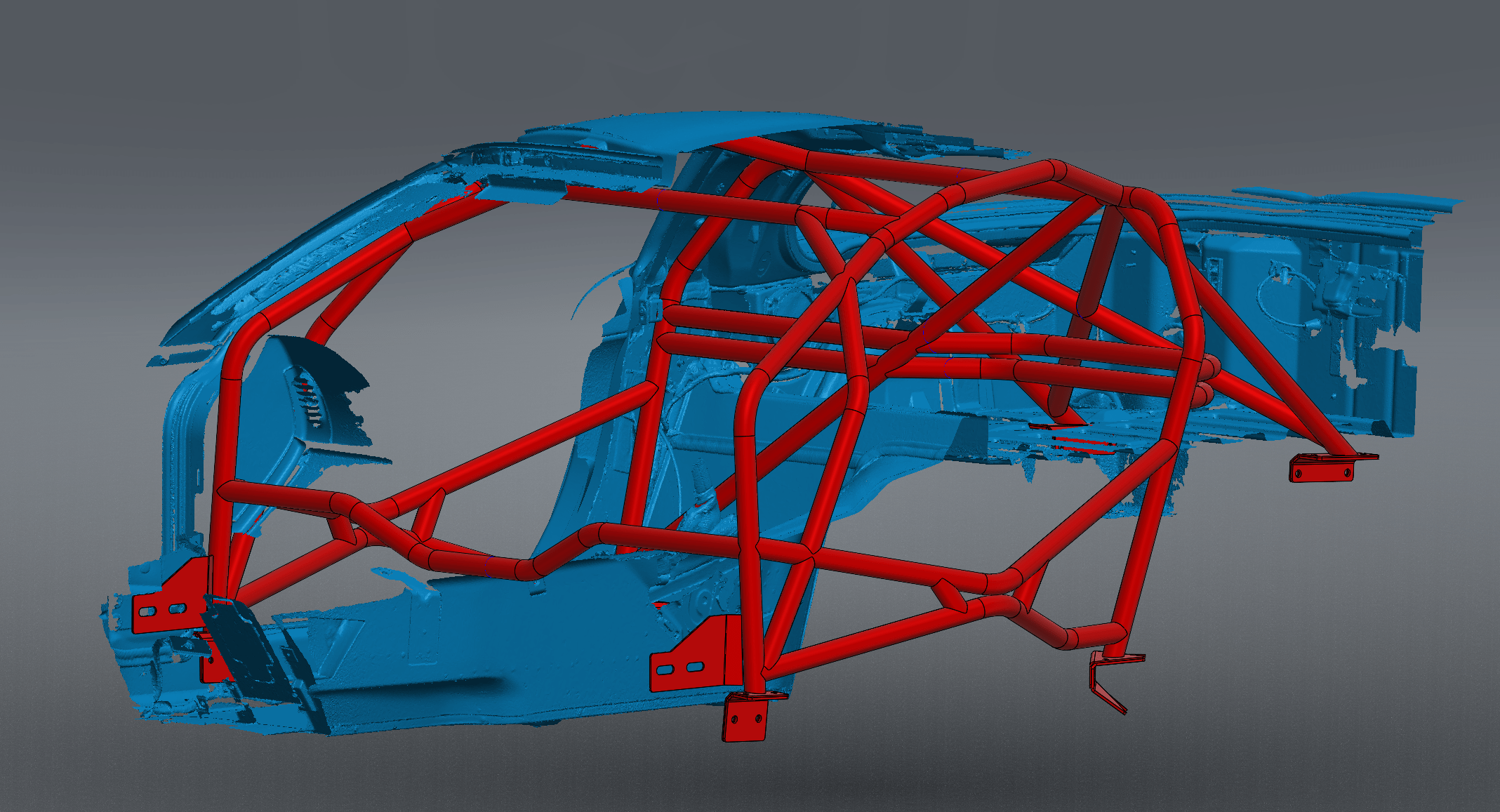

• X Door bar (regular or Z06)

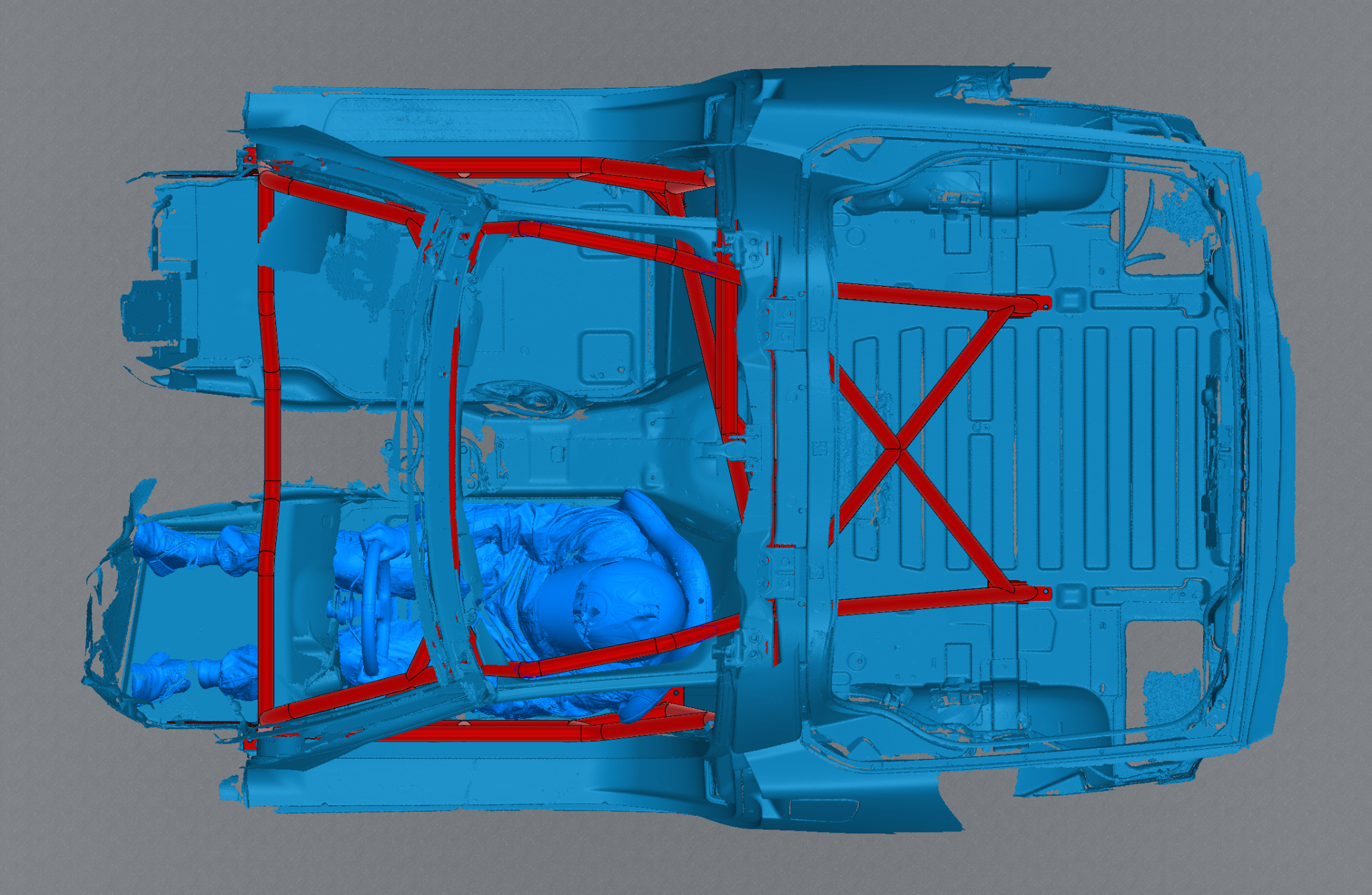

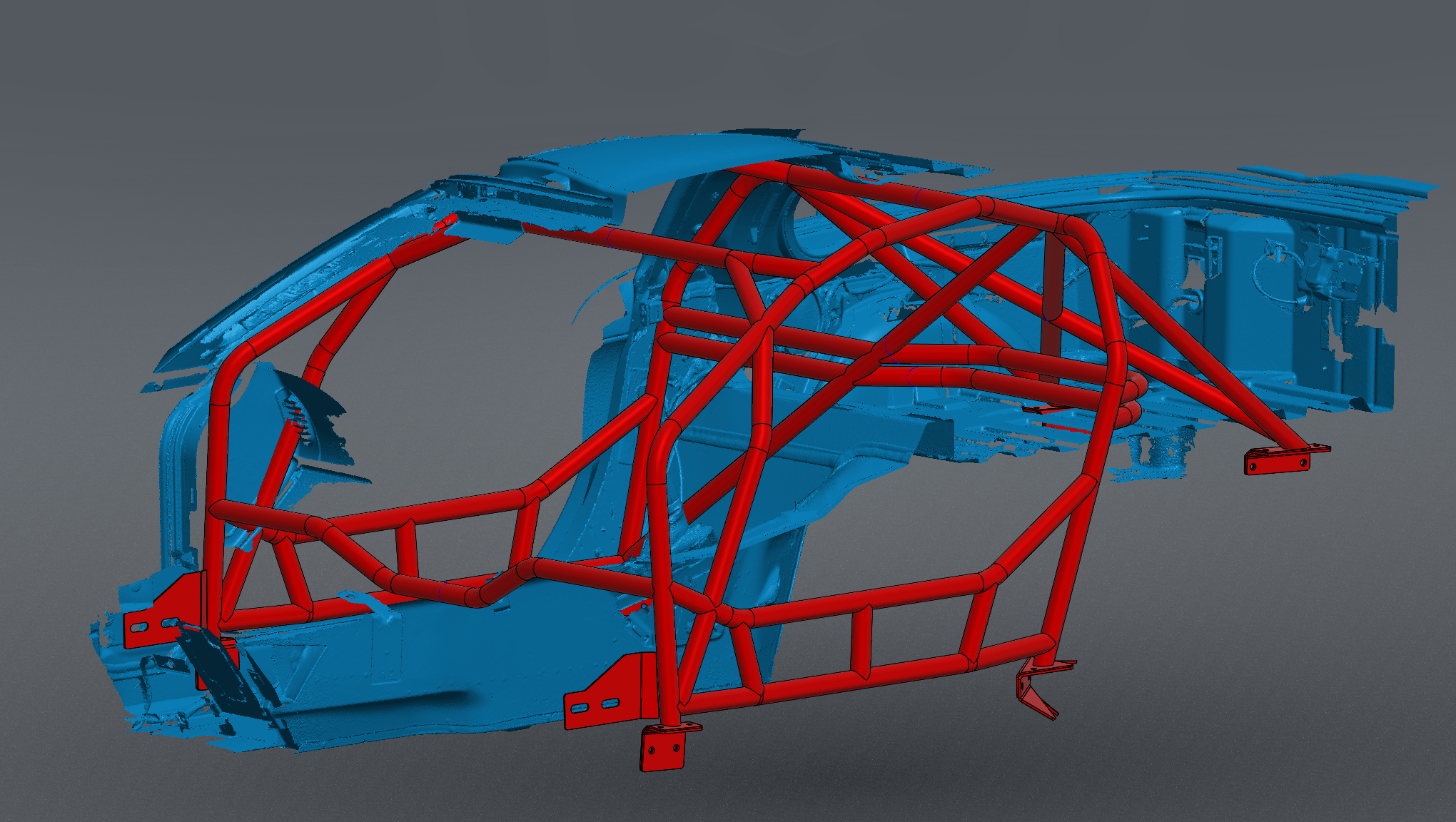

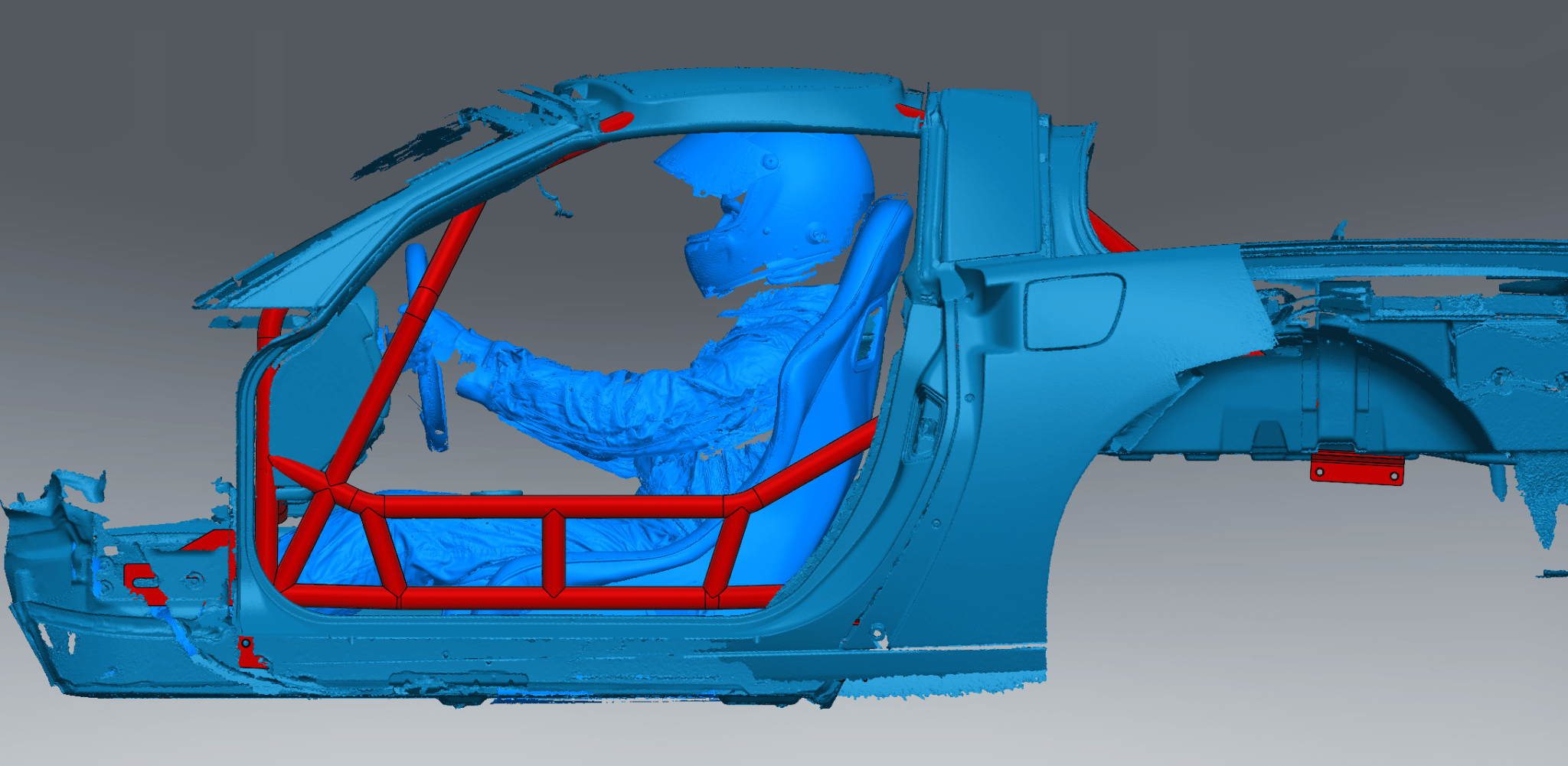

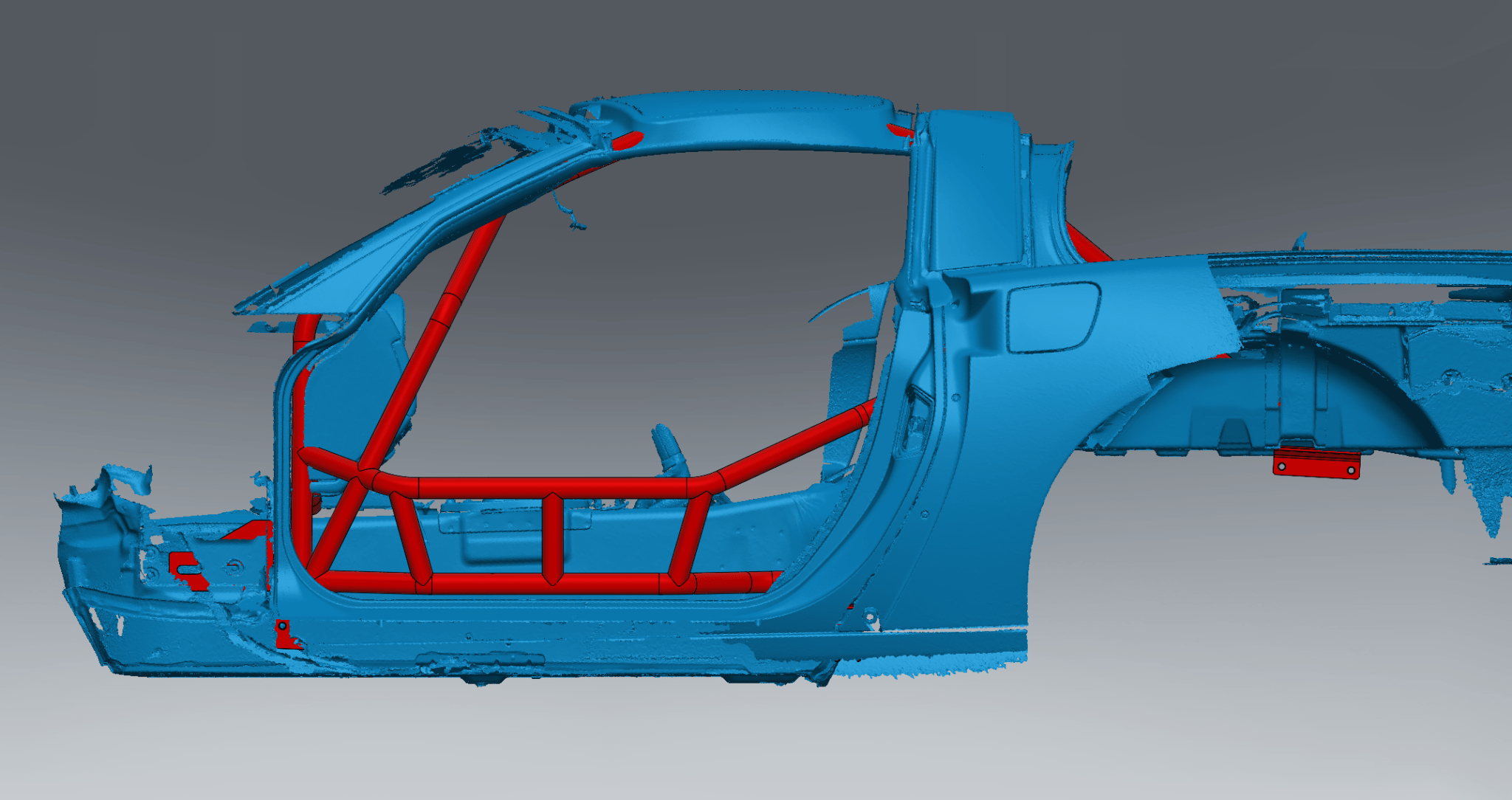

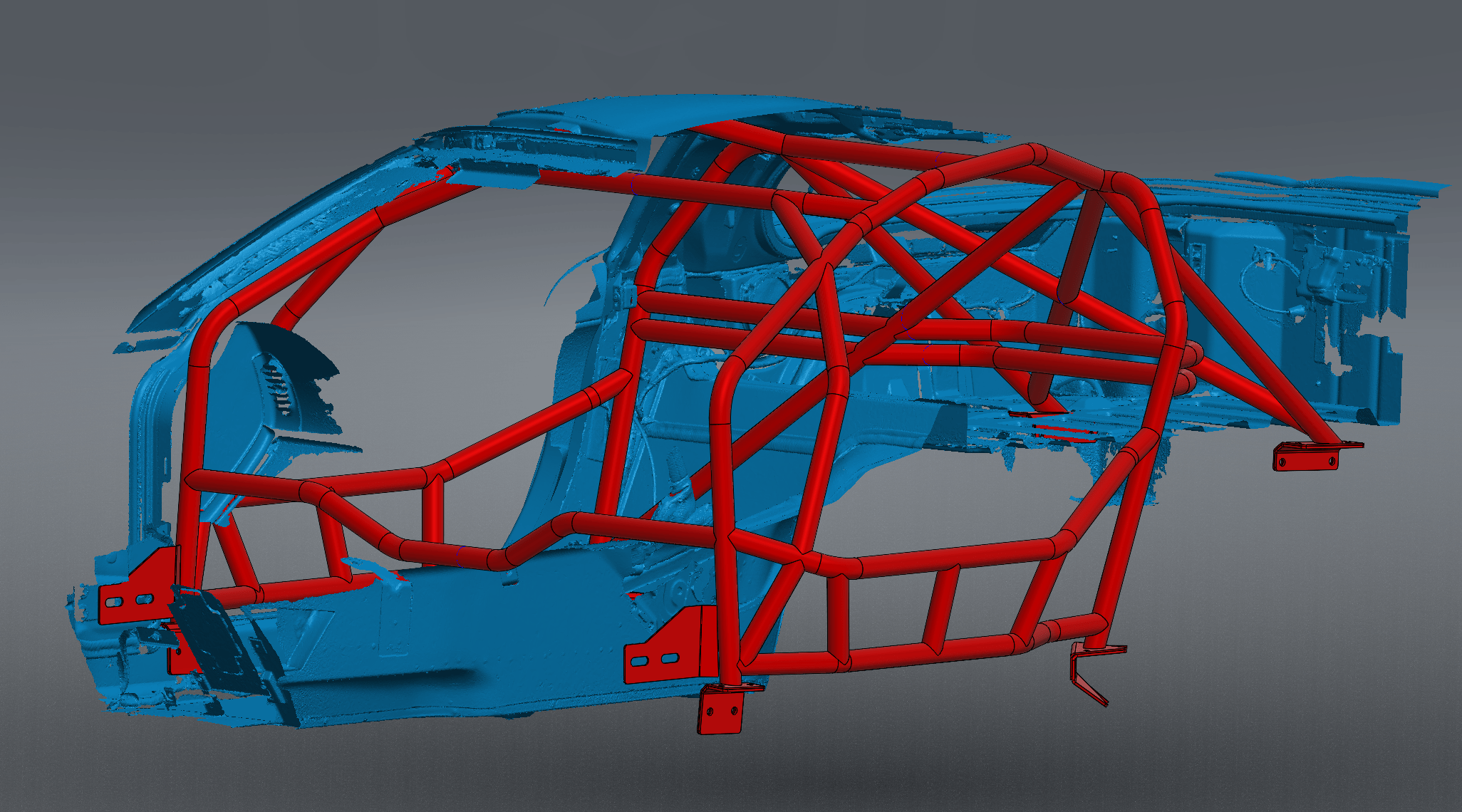

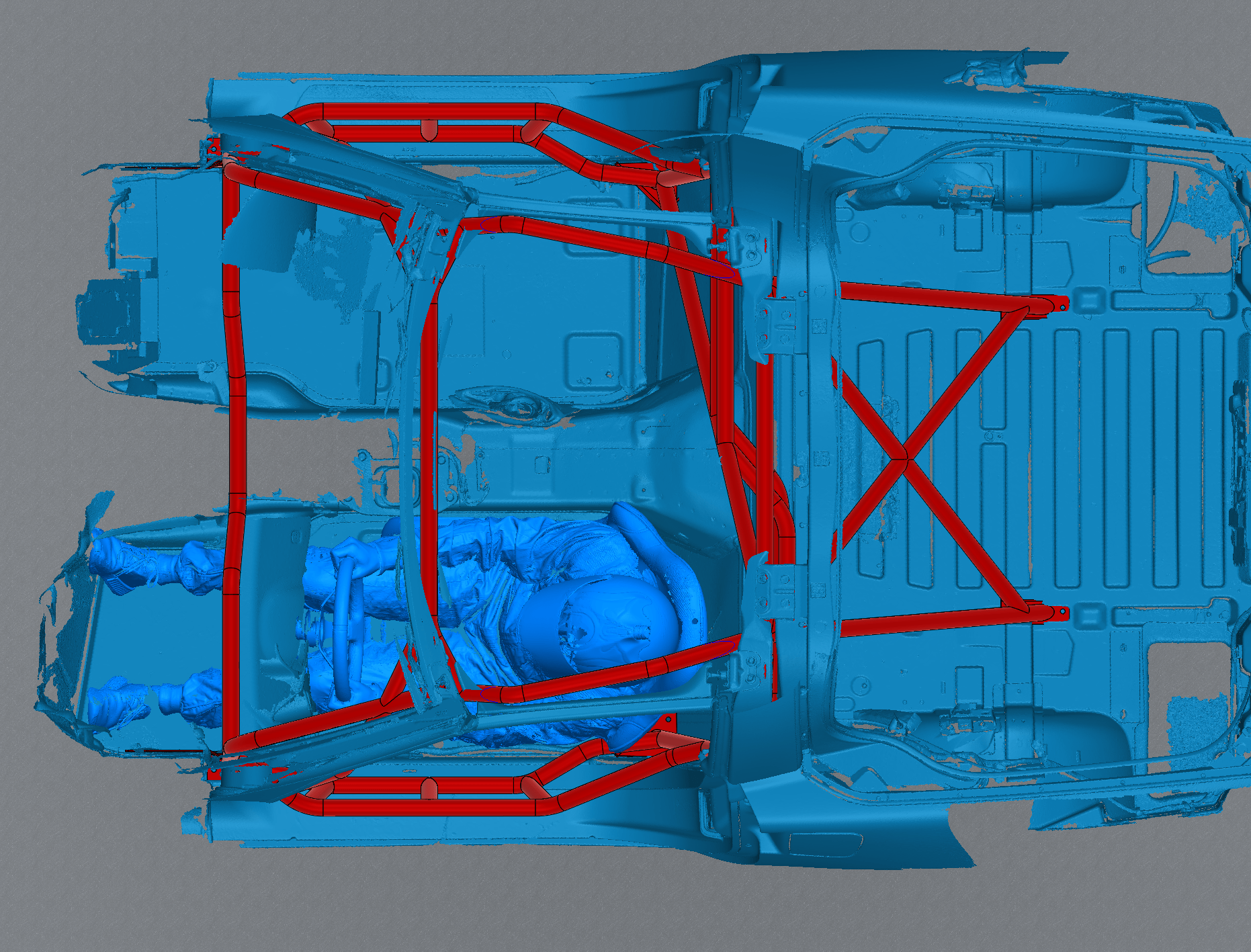

• Ladder Door bar (regular or Z06)

Cages that don’t require Gutted Doors have “Non-Gutted” in the name.

All C6 Cages require trimming of roof skin of some variation! **

Features:

• Fits the Chevrolet Corvette C6 Z06 Aluminum Chassis (2006-2013)
• Some Require gutted doors (noted in name Non-Gutted*)
• FIA bars *Not required for install
• Two harness bar options *For installation of EITHER single diagonal bars OR dual diagonal bars on main and rear down bars

FORMULA DRIFT SPEC – MADE TO ORDER AND WILL SHIP ONCE COMPLETED

This kit uses 1.5″ x .095″ 1020-1026 DOM tubing. Prior to purchasing the kit, customers are responsible for verifying their compliance with racing regulations set forth by their sanctioning bodies.
